Motor Cartridge

Interchangeable for models 66 through 1024. This unit is self-contained with all electrical components encased in a tough polypropylene housing. The inlet is 3-wire grounded and the toggle switch is protected by a rubber boot. The stainless steel retainer pin is easily removed to change the motor cartridge.

page100703

Cylinder Panels

Sterling mesh panels achieve maximum open area for better current flow and solution transfer. They contain and efficiently process extremely small, thin or delicate parts. Sterlins’s square hole design is made for large parts or heavier loads.

page100803

Danglers

Flexible, high capacity, leakproof. The plastic-tipped rod type is recommended for all mesh cylinders. Stainless steel, copper, or brass are also available. Sterling will also include special fixtures inside any cylinder. Please specify as needed.

  • Models 66-1024
  • 28 and 57 RPM are standard.
  • Optional: 10 and 94 RPM
  • variable speed
  • 12 and 24 volt DC
  • 36 volt AC.
  • Models 46 and 56 same as above, except
  • 30 and 60 RPM are standard.
  • Models 24 and 44, same as above, except
  • 30 and 60 RPM are standard
  • special, compact design
  • Specify “JR” motor when ordering.

Panel Construction

Opening Size (in.)

Features

B Mesh

.030 Nom.

Maximum open area best drainage of mesh types

C Mesh

.020 Nom.

Best general mesh-supplied as standard

C-1 Mesh

.010 Nom.

When parts would pierce C mesh

Square Hole

.095 Nom.

For heavier loads, larger parts. Molded holes for strength

Square Hole

.220 Nom.

Same as .095 (above)

page101002

Retrofit Service

Sterling will retrofit any existing barrel with one of our unique mesh cylinders...at no additional cost. Contact Sterling for details.

Oblique Series

Small lots plate easily in 2” x 4” baskets. With 6" x 6" or 6" x 11" baskets, these models can plate larger amounts. The same motor unit, with a universal tank rim clamp, drives all basket- shaft- and dangler-assemblies. Also this series is convenient for flash plating by hand and is an ideal alternative to horizontal barrels where space is limited. Comes complete with mesh baskets and dangler.

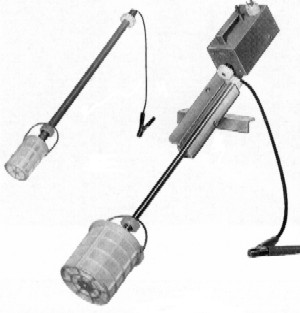

oblique_diagram302

Basket Size

A

B

C

D

Motor RPM

2 x 4

19.5

4

2.5

0-60

10

6 x 6

24.75

6

6

0-60

10

6 x 11

24.75

11

6

0-60

10

oblique_diagram202

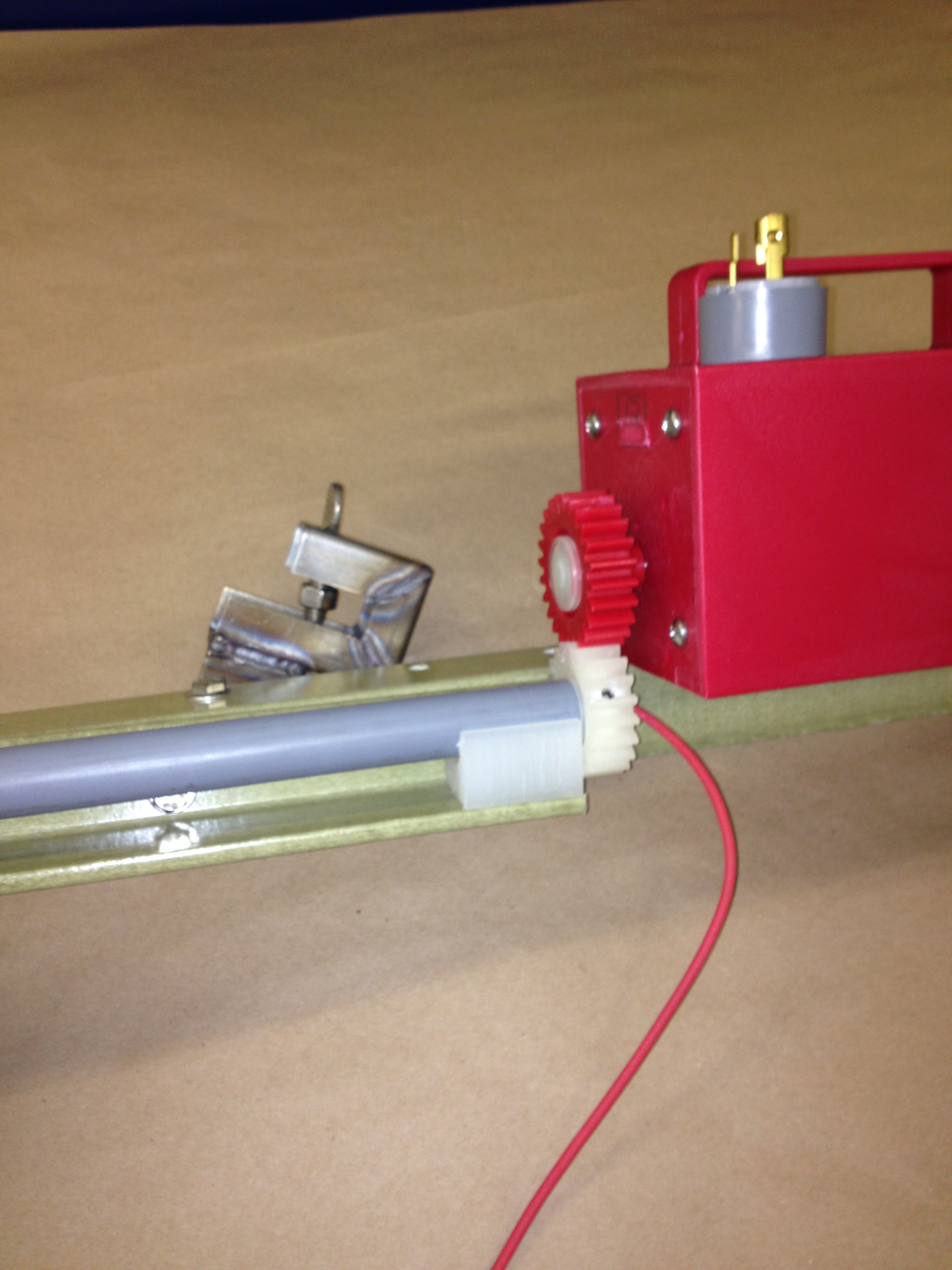

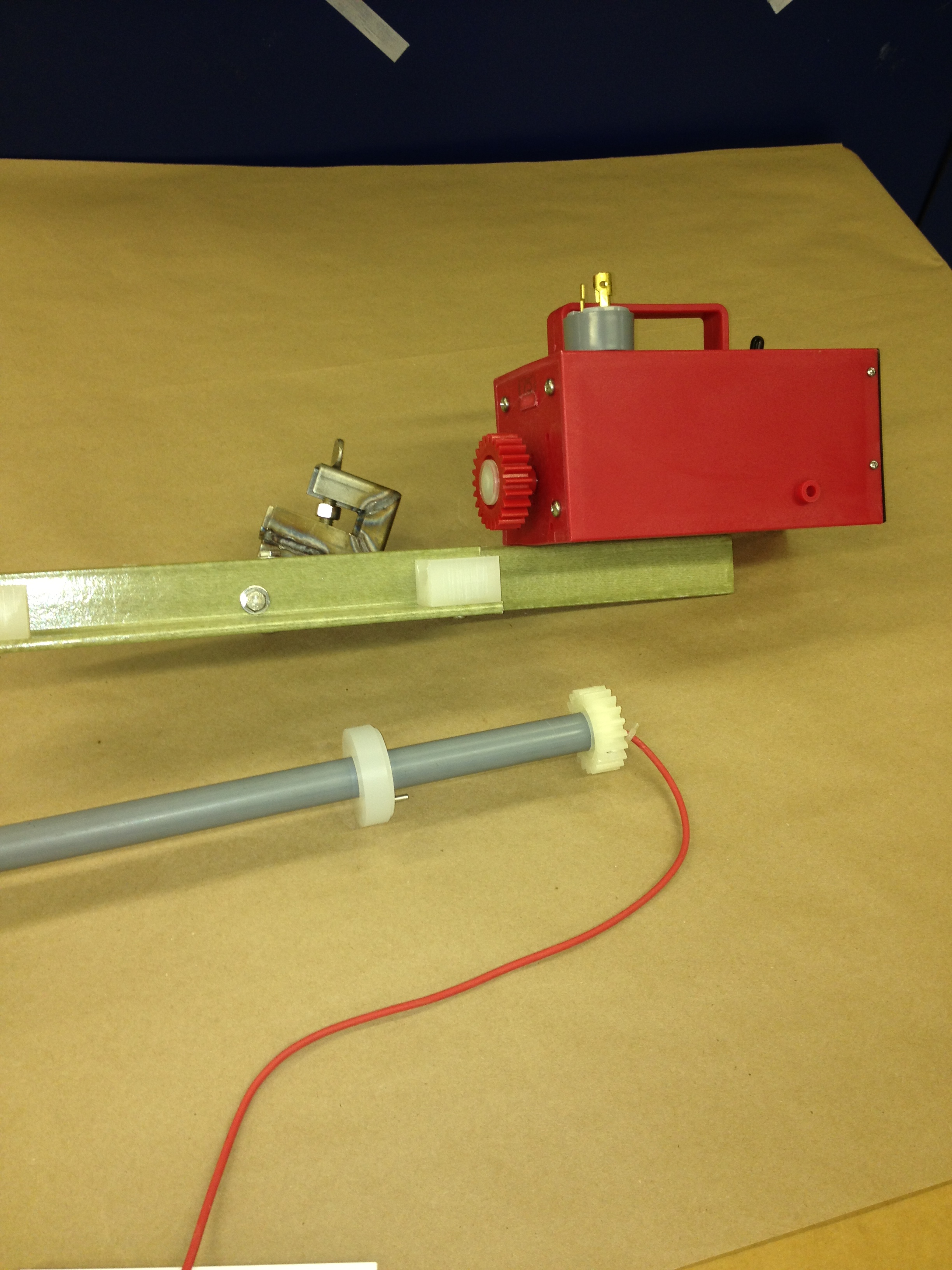

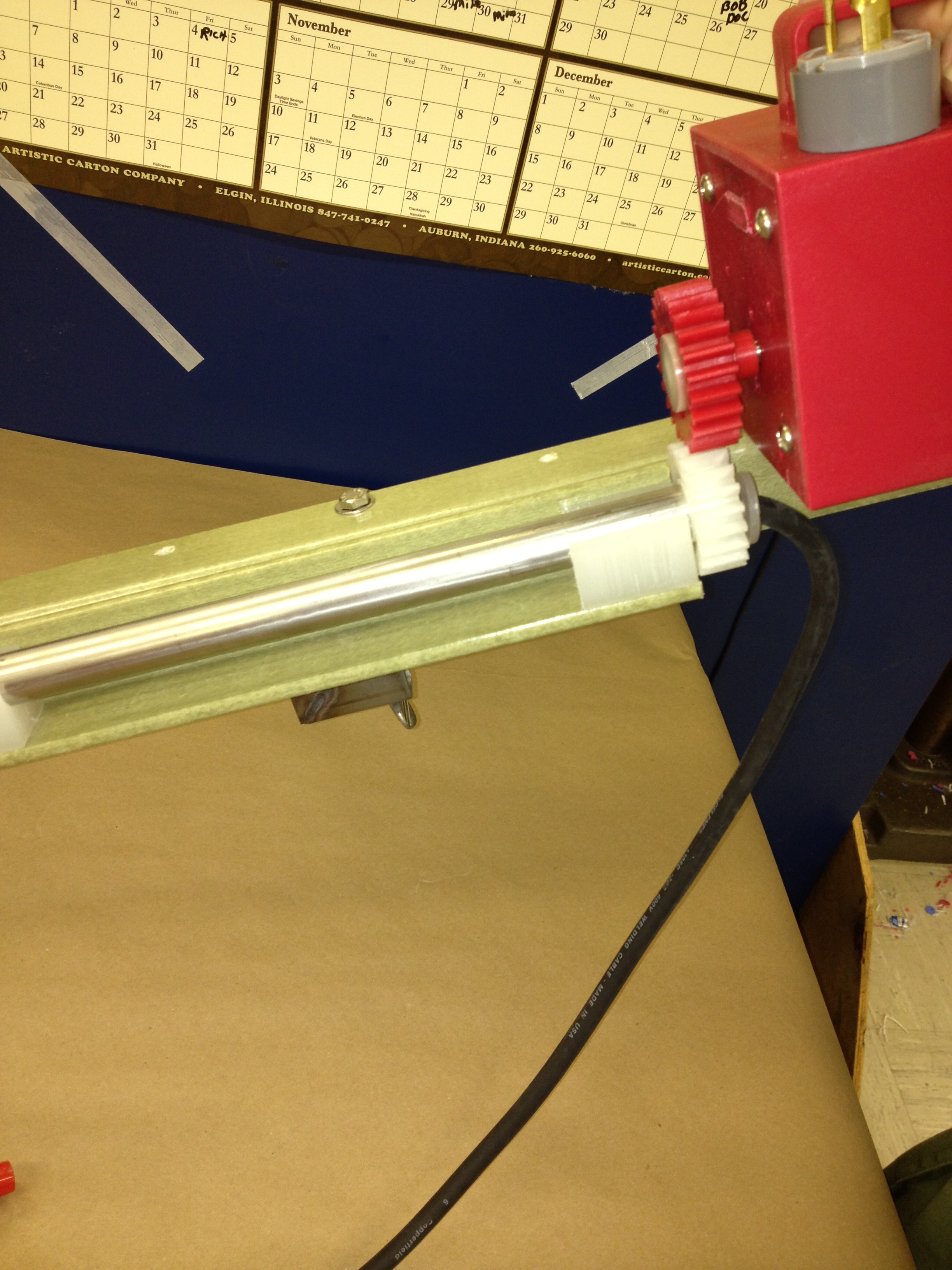

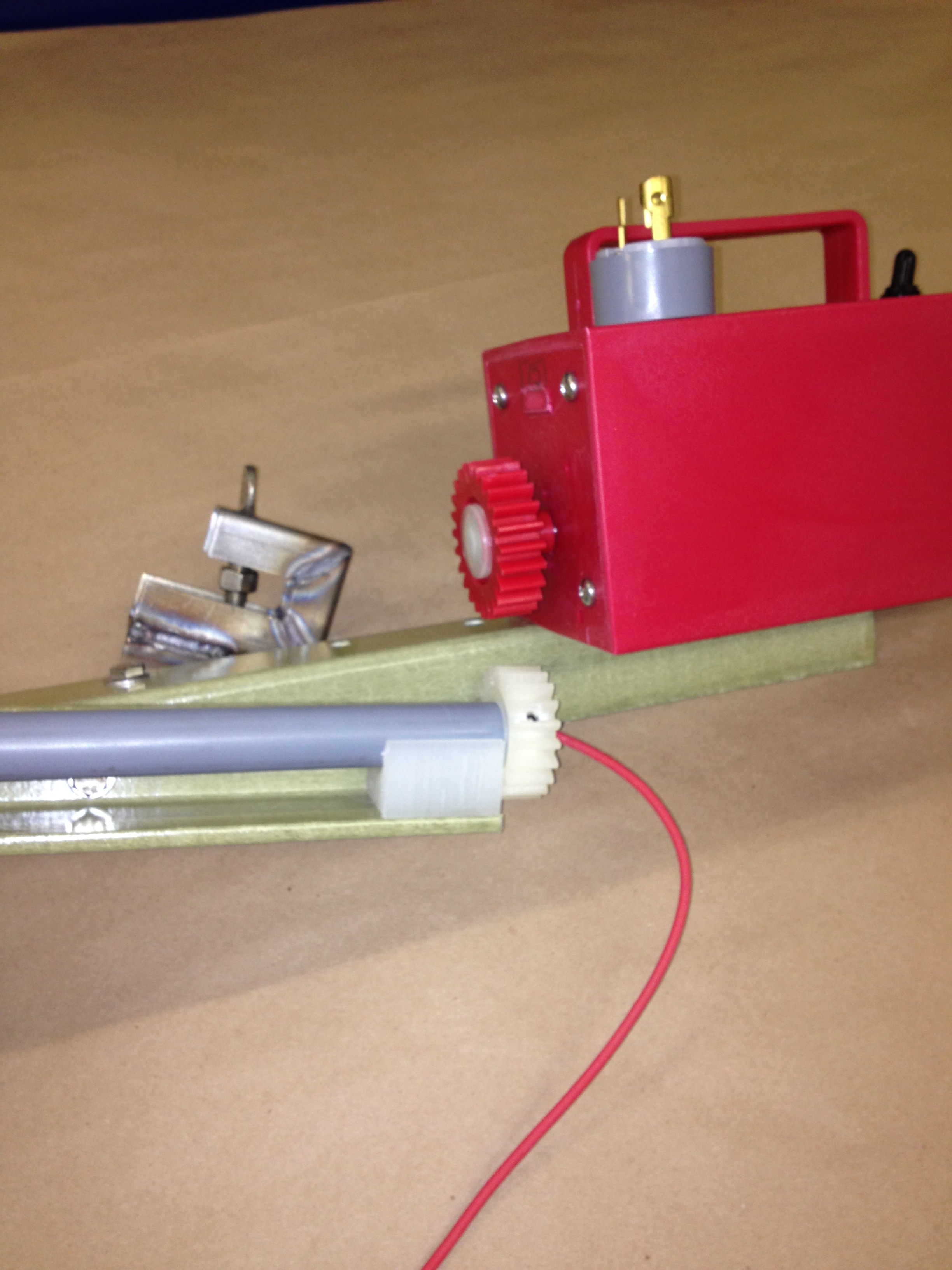

IMG_1074 IMG_1076
IMG_1072
IMG_1077 IMG_1078
