Dimensional Drawings

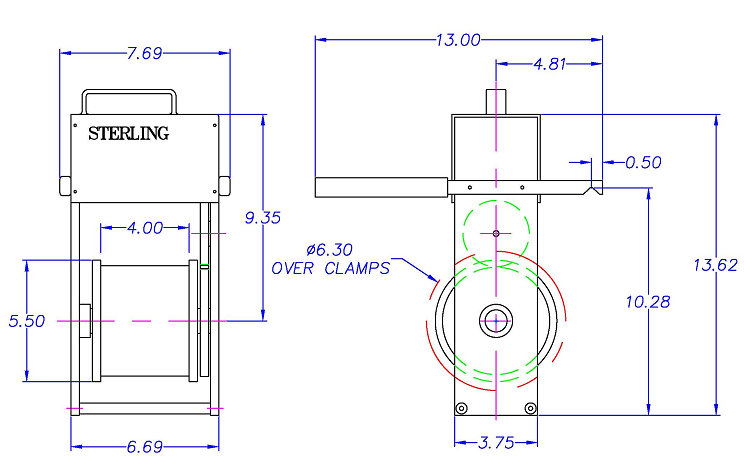

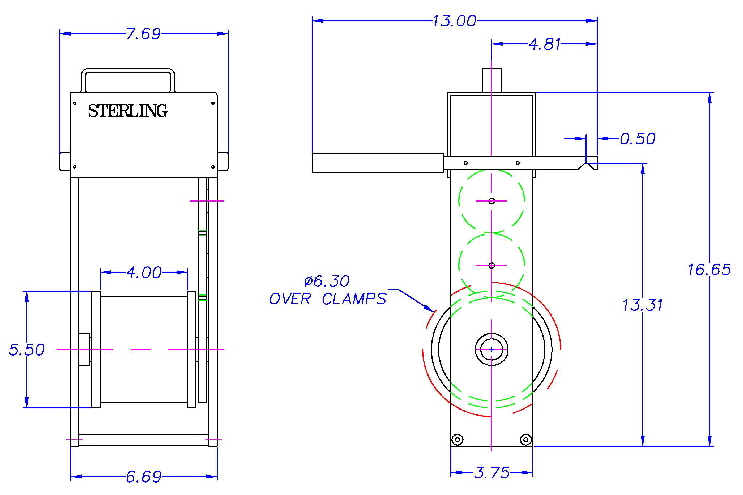

Model 44

B44BBL

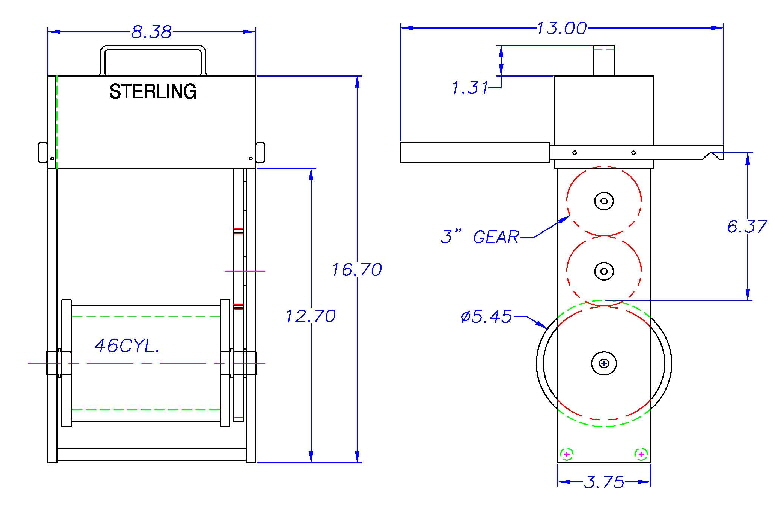

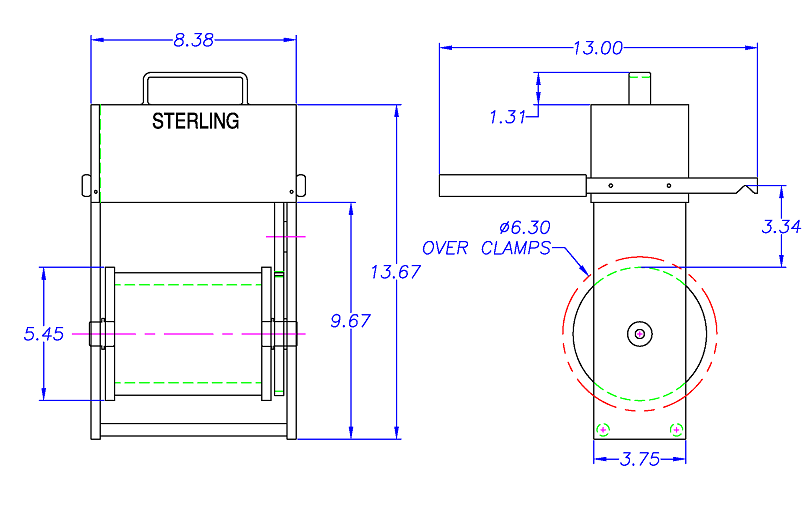

Model 46

MOD-46

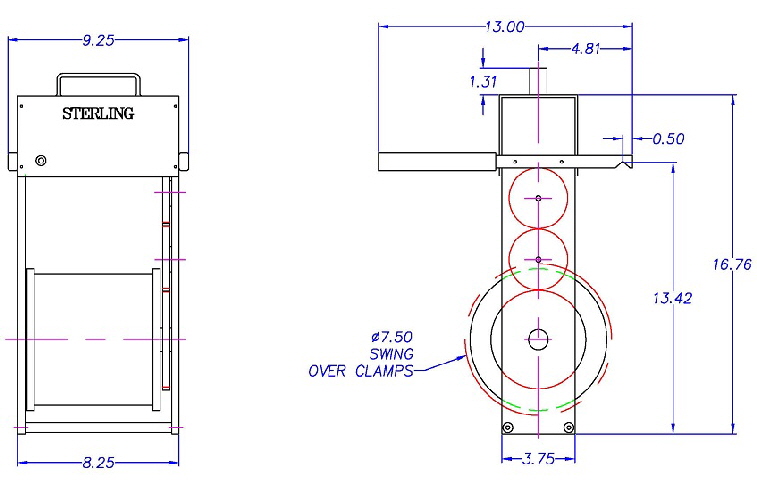

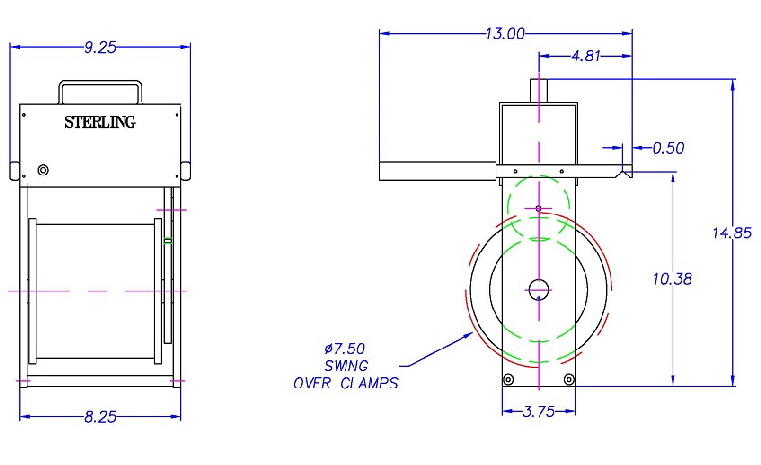

Model 56

B56BBL

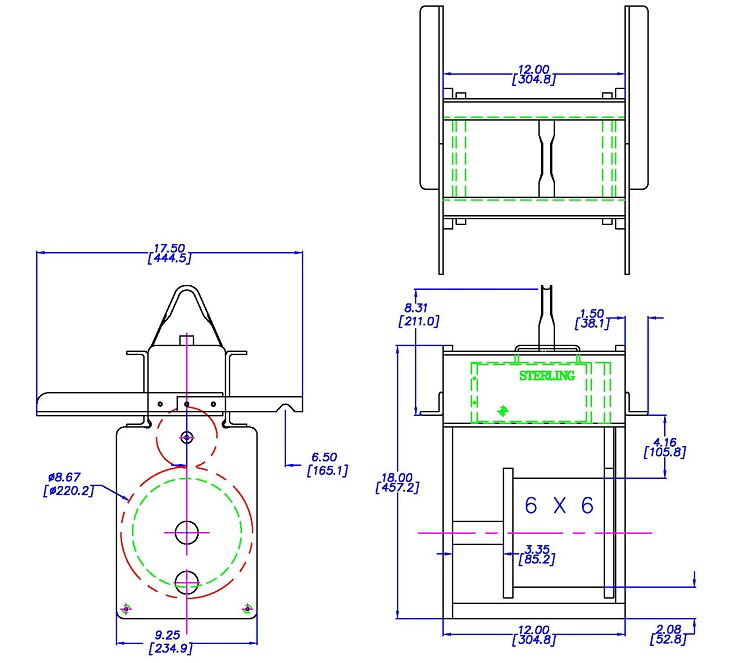

Model 66

6X6BARREL

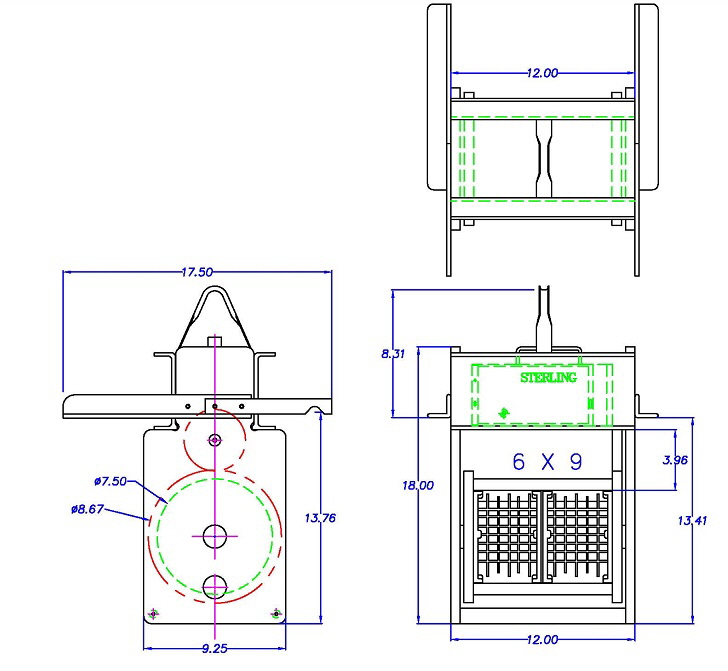

Model 69

6X9-BARREL-STD

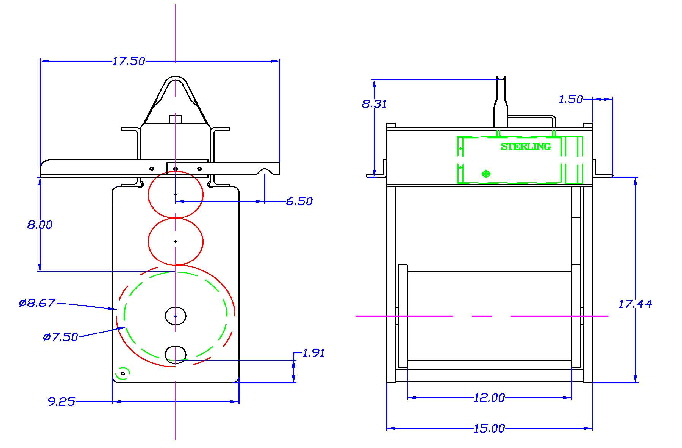

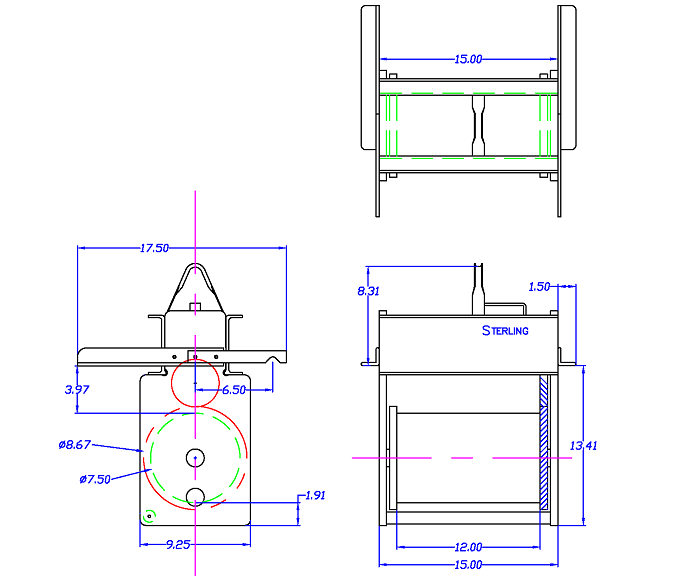

Model 612

612-STD Layout1 (1)

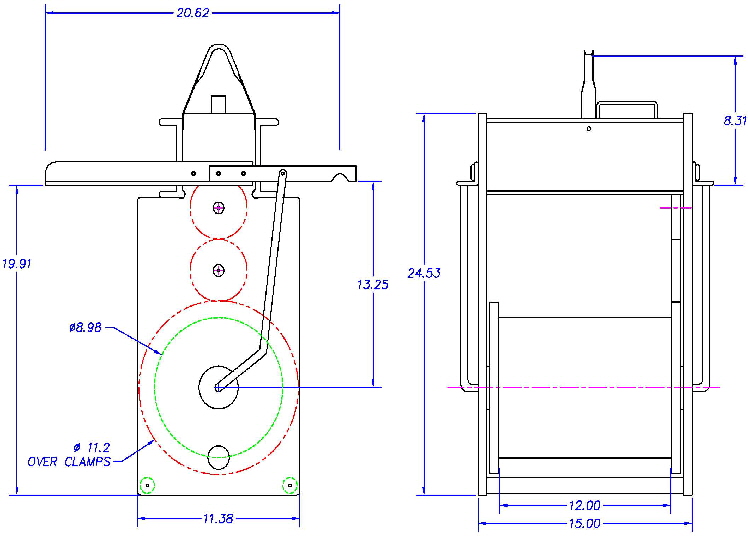

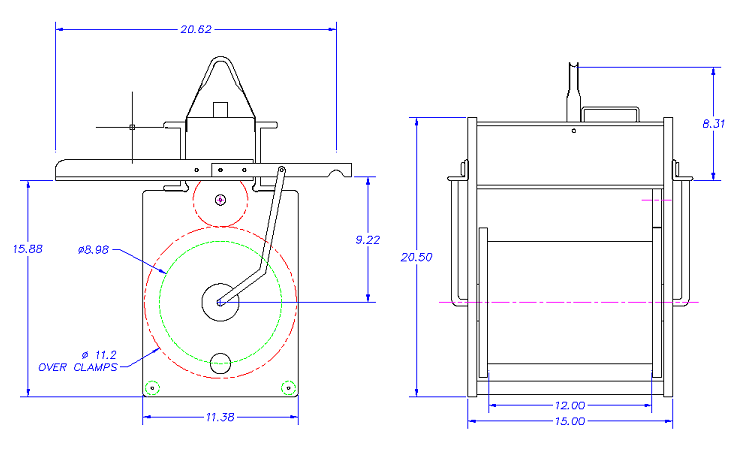

Model 8512

8512_STD_BBL

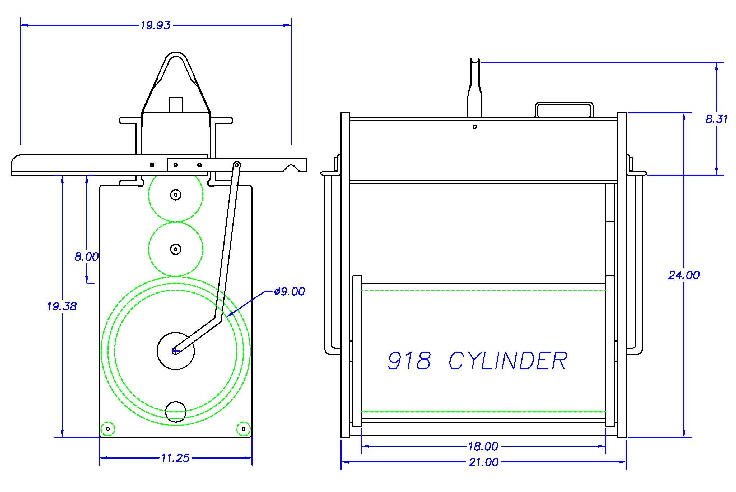

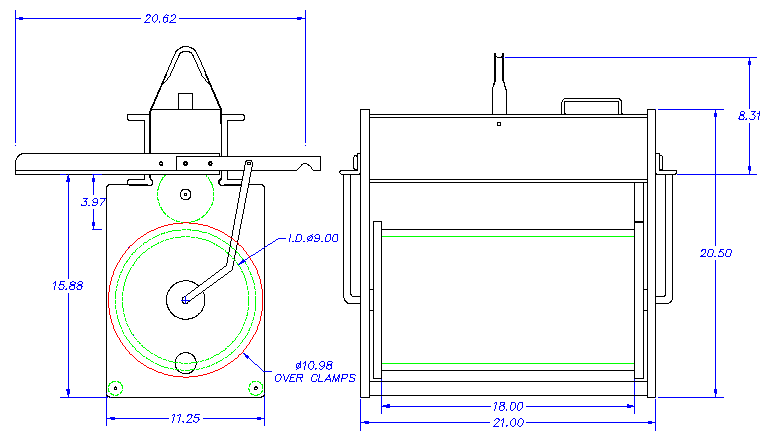

Model 918

918_STD_BBL

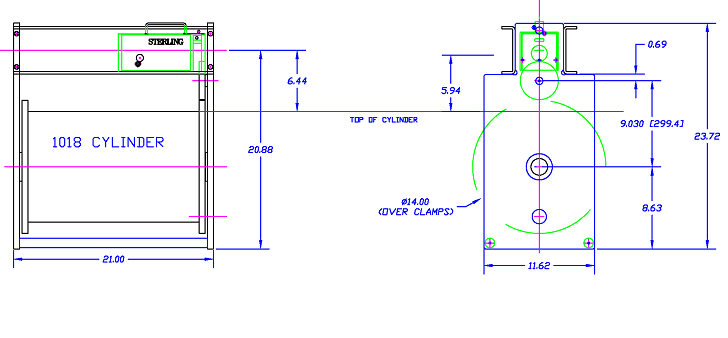

Model 1018

1018STD

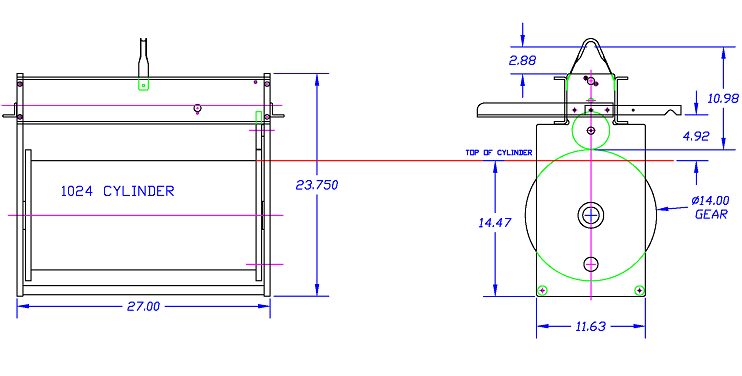

Model 1024

1024STD

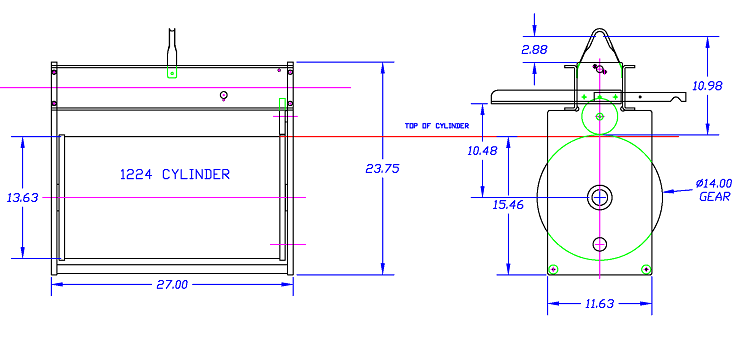

Model 1224

1224BBL

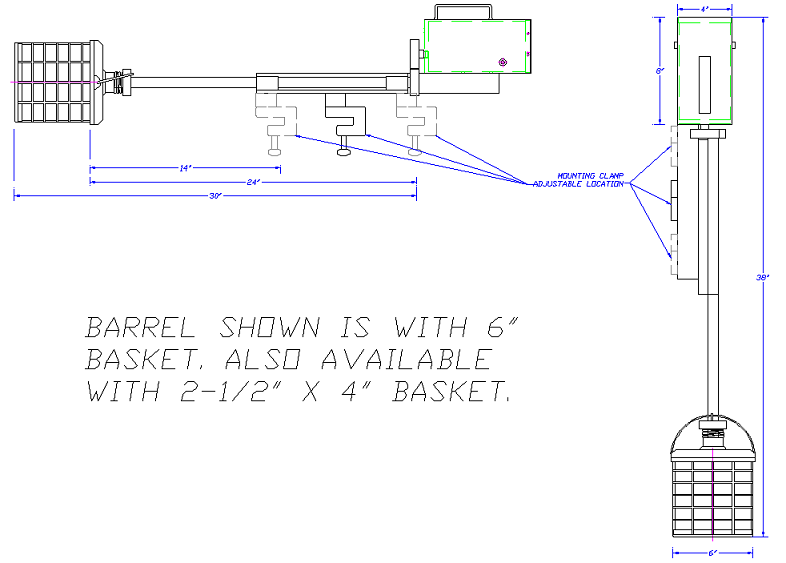

Model 60

Model-60
